Chevron pattern rubber belt merits

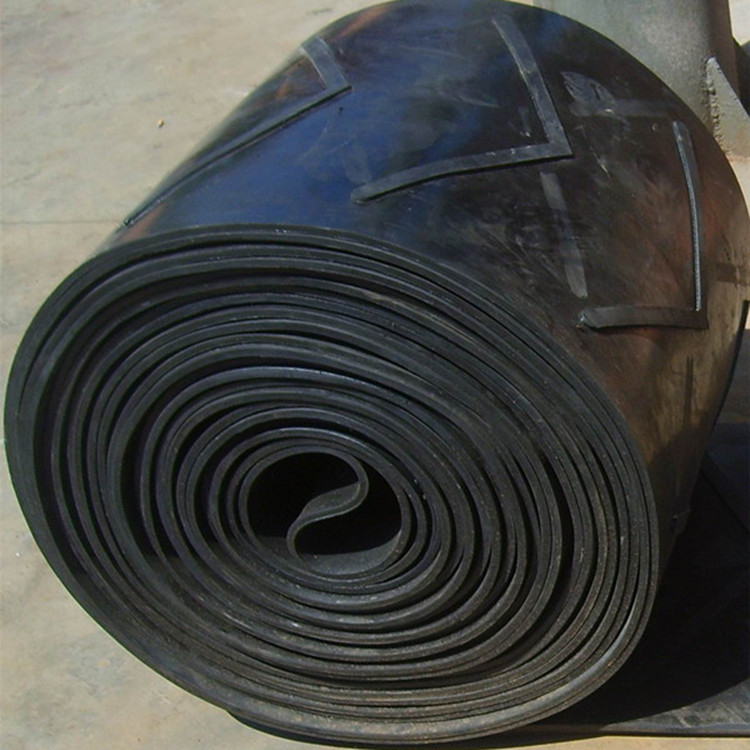

600mm belt width Chevron pattern rubber belt
Chevron pattern rubber belt Standards
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type,
Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type,
Oil-resistant type, Antistatic electricity type,High-grade type and etc.
Chevron pattern rubber belt merits
Fabric type | Fabric structure
| Fabric specs | Ply Thickness (mm/p) | (N/mm) strength | (mm) Cover thickness | Width (mm) | Length (m) | ||||||
Wrap |
Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
Nylon (NN)
| Nylon (N) | Nylon (N) | NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5 ~ 12 | 0 ~ 4.5 | 400 ~ 2200 | ≤300 |
NN-150 | 0.80 | 300 | 450 | 600 | 750 | 900 | |||||||
NN-200 | 0.90 | 400 | 600 | 800 | 1000 | 1200 | 500 ~ 2200 | ||||||
NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
NN-300 | 1.25 | -- | 900 | 1200 | 1500 | 1800 | |||||||
NN-400 | 1.45 | -- | -- | 1600 | 2000 | 2400 | 800 ~ 2200 | ||||||
NN-500 | 1.55 | -- | -- | 2000 | 2500 | 3000 | |||||||
Adhesion and elongation of Chevron pattern rubber belt
Belt carcass | Adhesion strength | Elongation | |||
Between plies N/mm | N/mm Between rubber and carcass | Longitudinal elongation elongation at break%≥
| Longitudinal elongation at reference load%≤
| ||
Cover thickness ≤1.5mm | Cover thickness ≥1.5mm | ||||
Nylon canvas | ≥4.50 | ≥3.20 | ≥3.50 | 10 | 4.0 |
According to the customer’s requirements, the belts could be made into endless belt, and
the covering rubber could be made into pit, chevron and level type etc.
Kinds of Chevron pattern rubber belt product process
Certification of HuaYun Brand Chevron pattern rubber belt
HuaYun brand Chevron pattern rubber belt have been certificated by the ISO9001/2008 and
Safety Certificate for Mining Products.
Chevron pattern rubber belt Useage
It is suitable for conveying materials at medium or long distance
and under conditions of heavy load and high speed.
